MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS 128-Bit Graphics Card
MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS 128-Bit Graphics Card
Couldn't load pickup availability
NVIDIA Blackwell Architecture: This card is powered by the latest NVIDIA Blackwell architecture, offering enhanced performance and efficiency for gaming and creative tasks.
16GB GDDR7 Memory: Equipped with 16GB of GDDR7 memory, it ensures smooth and high-speed performance for demanding applications and games.

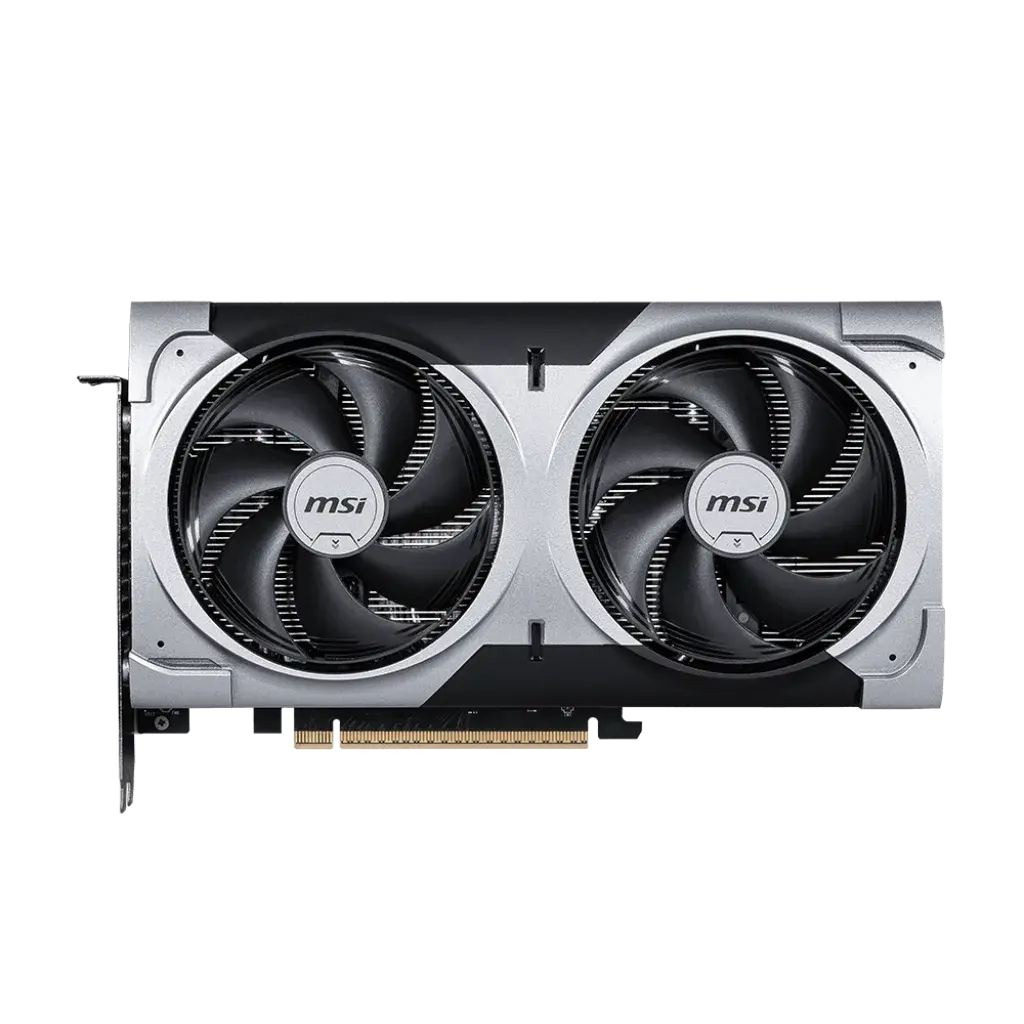

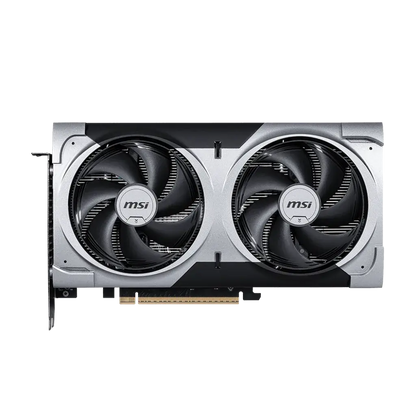

Advanced Cooling System: Features a dual-fan thermal solution with STORMFORCE fans and heat pipes for optimal airflow and cooling, ensuring the card runs efficiently and quietly.
Ray Tracing and DLSS 4: Supports fourth-gen ray tracing cores and DLSS 4 technology, providing realistic graphics and improved frame rates through AI-powered enhancements.

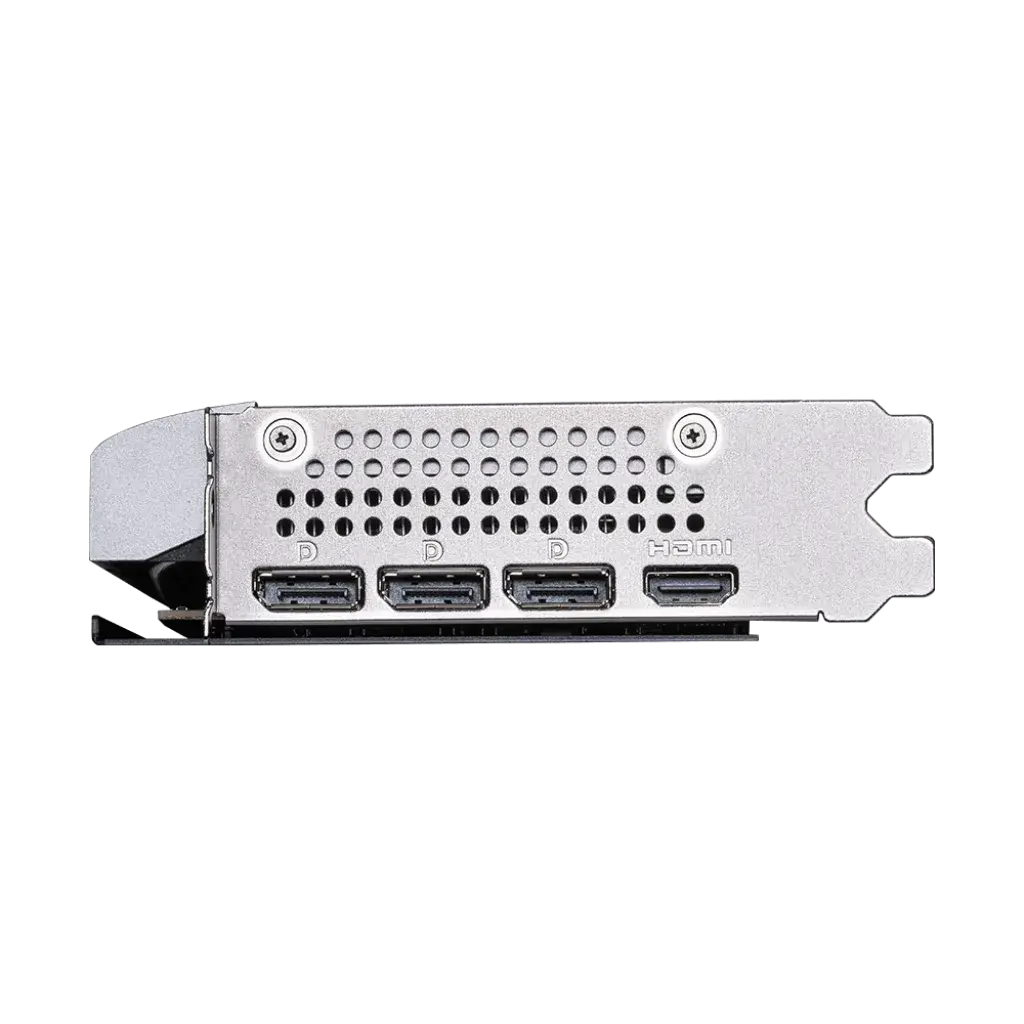

Multiple Display Outputs: Includes three DisplayPort 2.1b and one HDMI 2.1b ports, supporting up to 4K at 480Hz or 8K at 120Hz, making it ideal for high-resolution gaming and VR experiences.
| Model | RTX 5060 Ti |
| Marketing Name | GeForce RTX™ 5060 Ti 16G VENTUS 2X OC PLUS |
| Model Name | G506T-16V2CP |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
| CUDA® CORES | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |
| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 180 W |
| Power connectors | 8-pin x1 |
| Recommended PSU | 600 W |
| Card Dimension (mm) | 227 x 127 x 41 mm |
| Weight (Card / Package) | 600 g / 862 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
| Warranty | 3 Years limited warranty |
