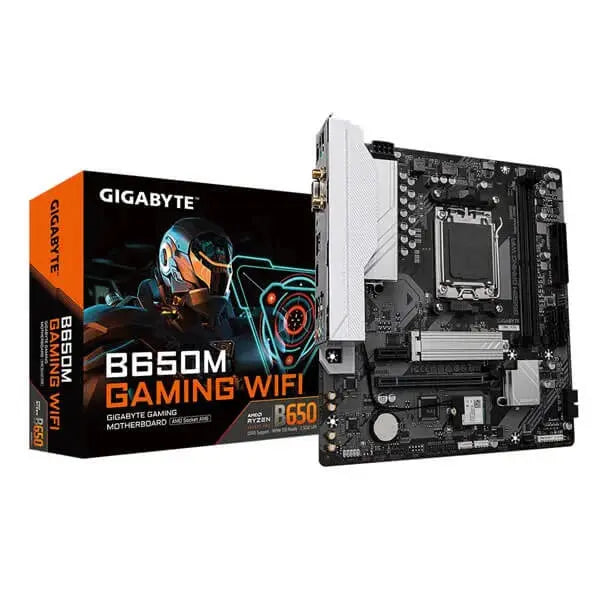

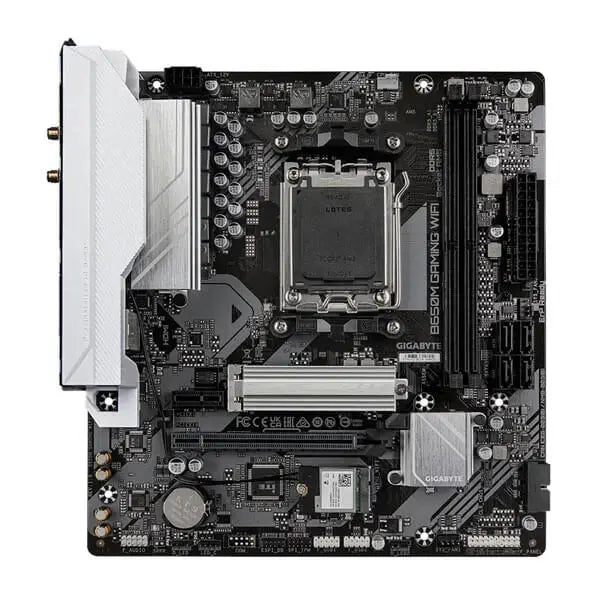

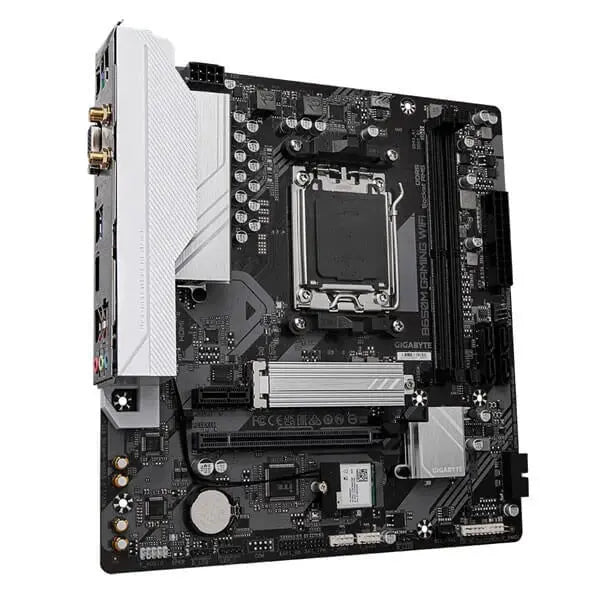

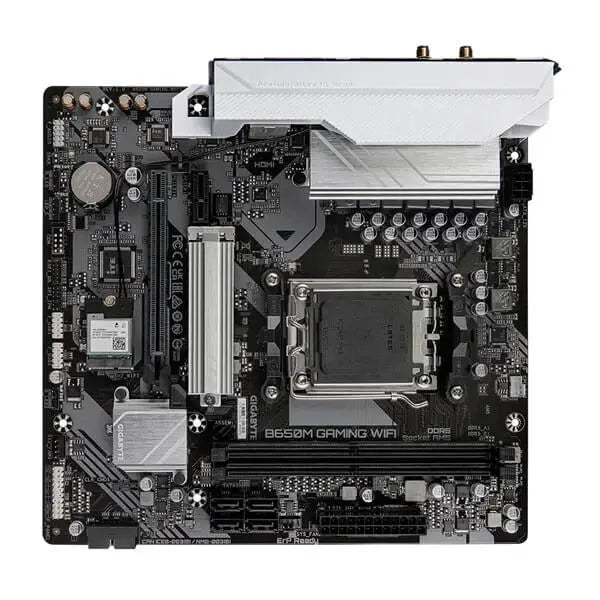

GIGABYTE B650M GAMING WIFI DDR5 AMD AM5 Socket Micro ATX Gaming Motherboard
GIGABYTE B650M GAMING WIFI DDR5 AMD AM5 Socket Micro ATX Gaming Motherboard
Couldn't load pickup availability
AM5 Socket Compatibility: This motherboard is designed to support the latest AMD Ryzen™ 7000/8000/9000 Series Processors. This ensures that you can take advantage of the most recent advancements in processor technology, providing you with exceptional performance and future-proofing your system.
Dual-Channel DDR5 Memory Support: With support for DDR5 memory, this motherboard allows for faster data transfer rates and improved efficiency compared to DDR4. This means you can enjoy smoother multitasking, quicker application loading times, and an overall boost in system responsiveness.
PCIe 4.0 x4 M.2 Connector: The inclusion of a PCIe 4.0 x4 M.2 connector means you can install high-speed SSDs, which significantly reduce boot times and load times for your games and applications. This feature ensures that your storage solutions are as fast as your system demands.
Advanced Networking Capabilities: Equipped with both 2.5GbE LAN and 802.11ac Wi-Fi, this motherboard provides high-speed and reliable internet connectivity. Whether you're gaming online, streaming high-definition content, or downloading large files, you can count on a stable and fast network connection.
Smart Fan 6 Technology: To keep your system cool and running efficiently, the motherboard features Smart Fan 6 technology. This advanced cooling solution includes multiple temperature sensors and hybrid fan headers, allowing for precise control over your system's cooling performance. This ensures that your components remain at optimal temperatures, even during intense gaming sessions.
| Model | B650M GAMING WIFI |
| CPU Socket |
AMD Socket AM5, support for: AMD Ryzen 7000 Ryzen 8000 Ryzen 9000 Series Processors |
| Chipset | AMD B650 |
| Memory |
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| On-Board Graphics support |
Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Expansion Slot |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless and Bluetooth |
AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard |
| Storage |
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio |
Realtek® Audio CODEC |
| USB |
CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 2 x USB 2.0/1.1 ports available through the internal USB header |
| Back Panel Connectors |

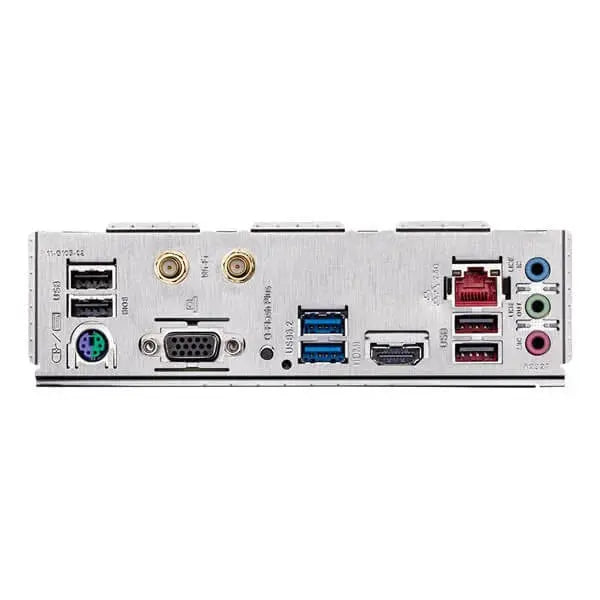

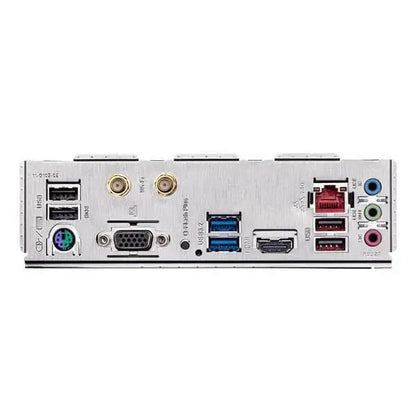

4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
| Internal I/O ports |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Dimensions | Micro ATX Form Factor 24.0cm x 22.5cm |
| Warranty | 3 Years of Brand Warranty |
