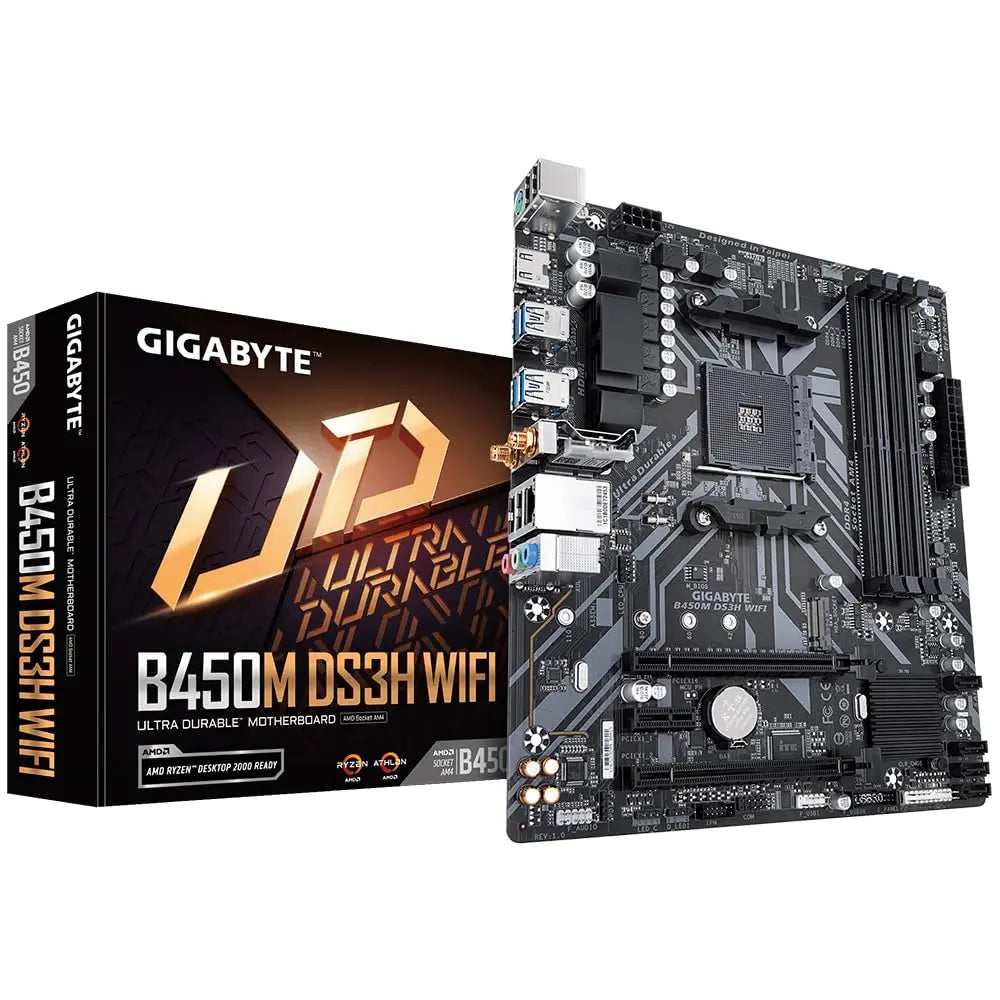

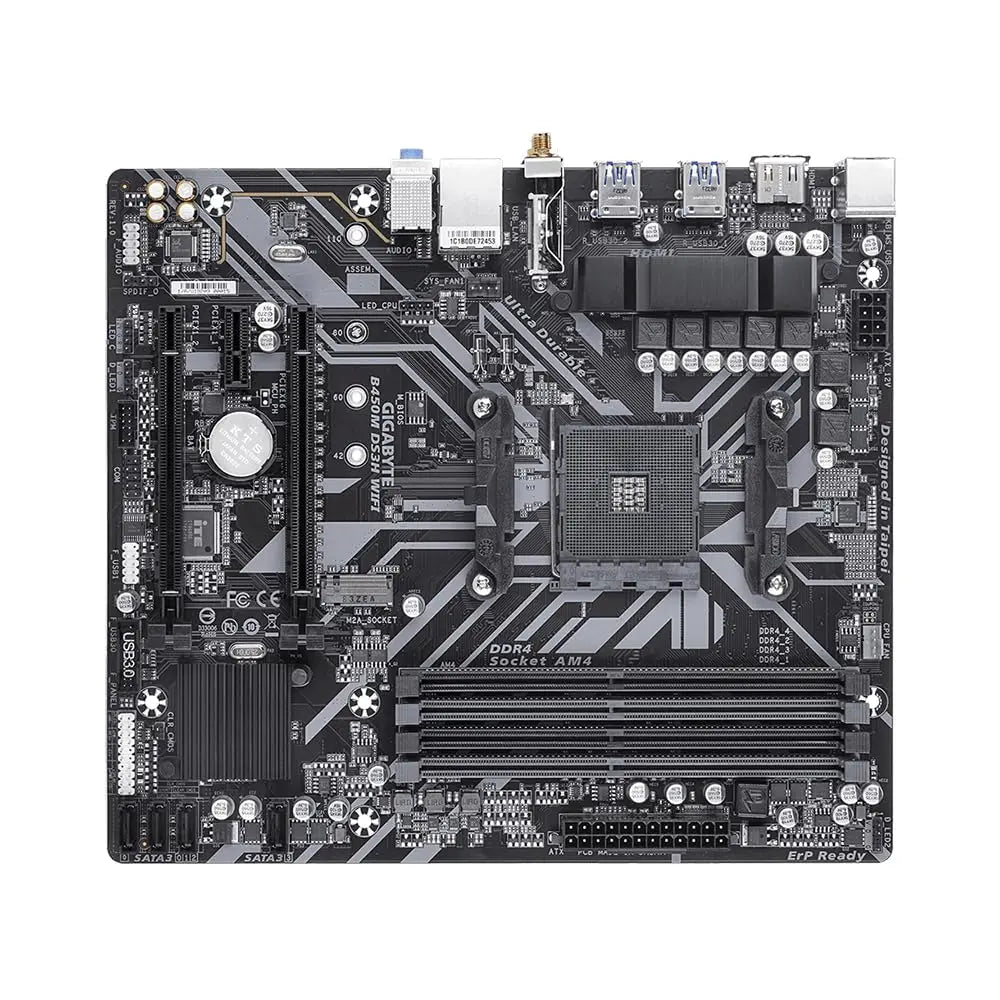

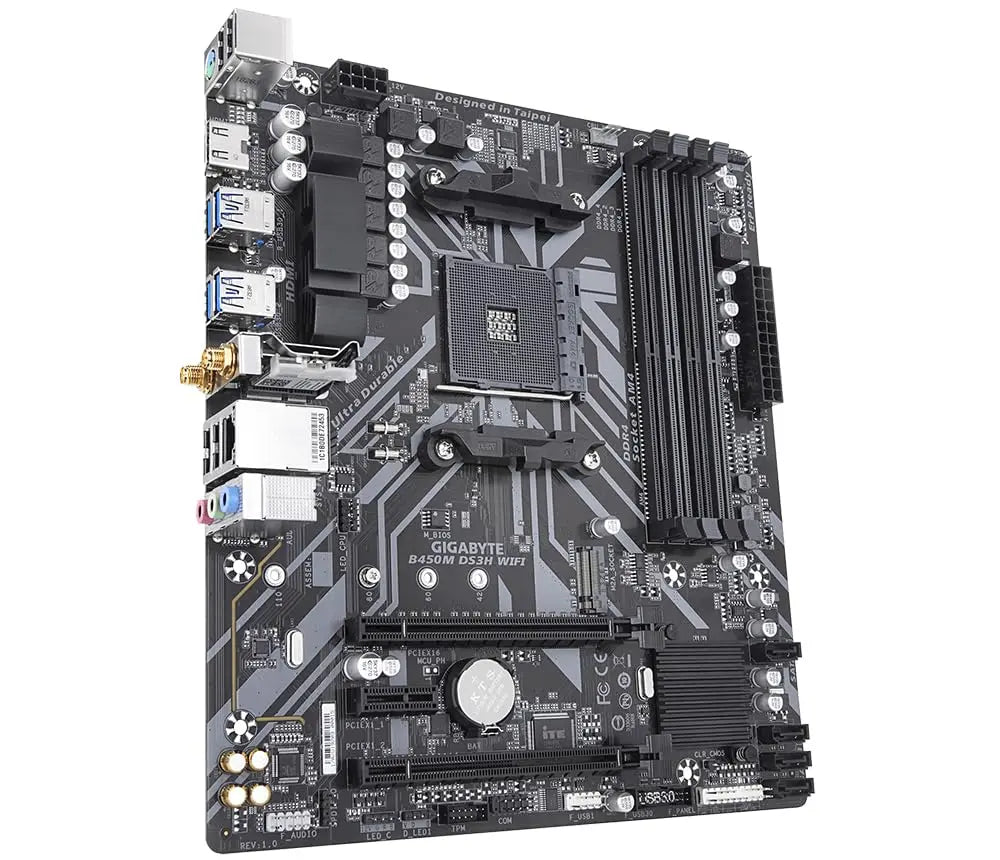

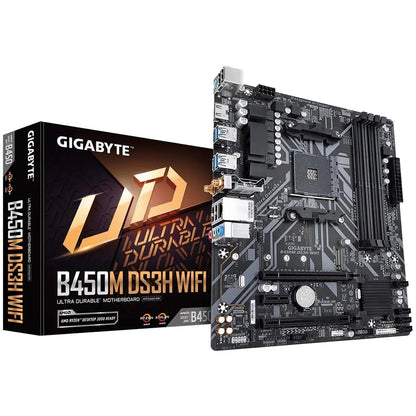

GIGABYTE B450M DS3H WIFI DS3H Ultra Durable AMD AM4 Micro ATX DDR4 Motherboard

GIGABYTE B450M DS3H WIFI DS3H Ultra Durable AMD AM4 Micro ATX DDR4 Motherboard

Rs. 6,247.00
Rs. 7,349.00 Rs. 6,247.00
Sale Sold out
Shipping calculated at checkout.
AMD B450 Ultra Durable Motherboard with Realtek GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, RGB FUSION 2.0, Intel Dual Band 802.11ac WIFI, CEC 2019 ready.



  • Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel Dual Band 802.11ac WIFI & BT 4.2
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard Design
  • RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
  • Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • APP Center Including EasyTune and Cloud Station Utilities
  • CEC 2019 Ready, Save Power with a Simple Click



Model B450M WIFI (rev. 1.4)
CPU Support AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
CPU Socket AM4 Socket
Chipset AMD B450
Form Factor Micro ATX Form Factor
Memory
  • 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
  • Dual channel memory architecture
  • Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Expansion Slot 1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
1 x PCI Express x1 slot
Onboard Graphics

Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
The maximum shared memory of 16 GB
Wireless Communication module AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)
WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ac wireless standard
Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB

CPU:
4 x USB 3.1 Gen 1 ports on the back panel

Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Realtek GbE LAN chip (1 Gbps/100 Mbps)
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

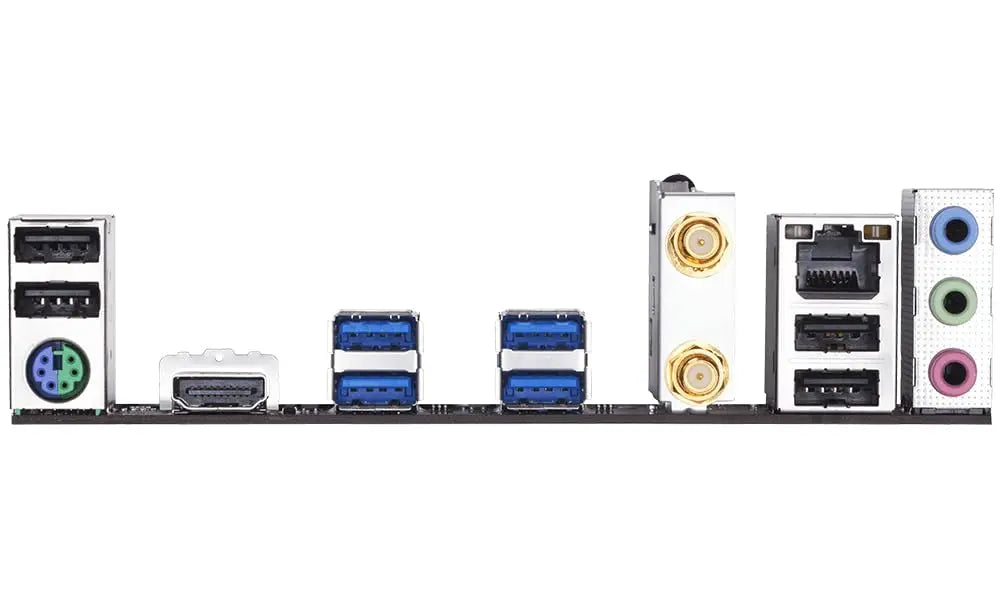

Back-Panel Ports 1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (1T1R)
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB LED strip header
2 x addressable LED strip headers
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
Operating System Support for Windows 10 64-bit
Support for Windows 7 64-bit
Dimension Micro-ATX
24.4cm x 21.5cm
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for APP Center
EasyTune
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
cFosSpeed
Warranty 3 Years Brand Warranty
