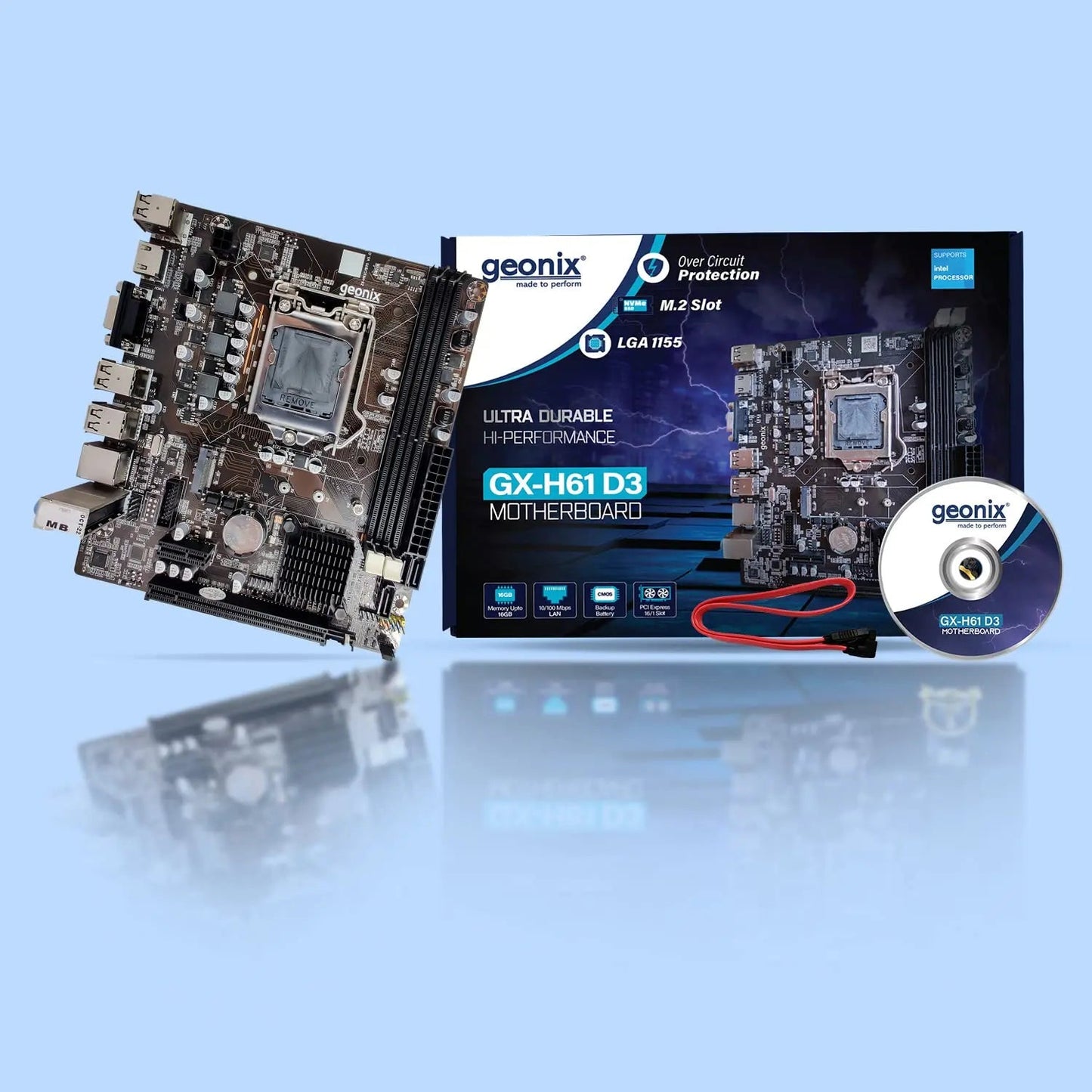

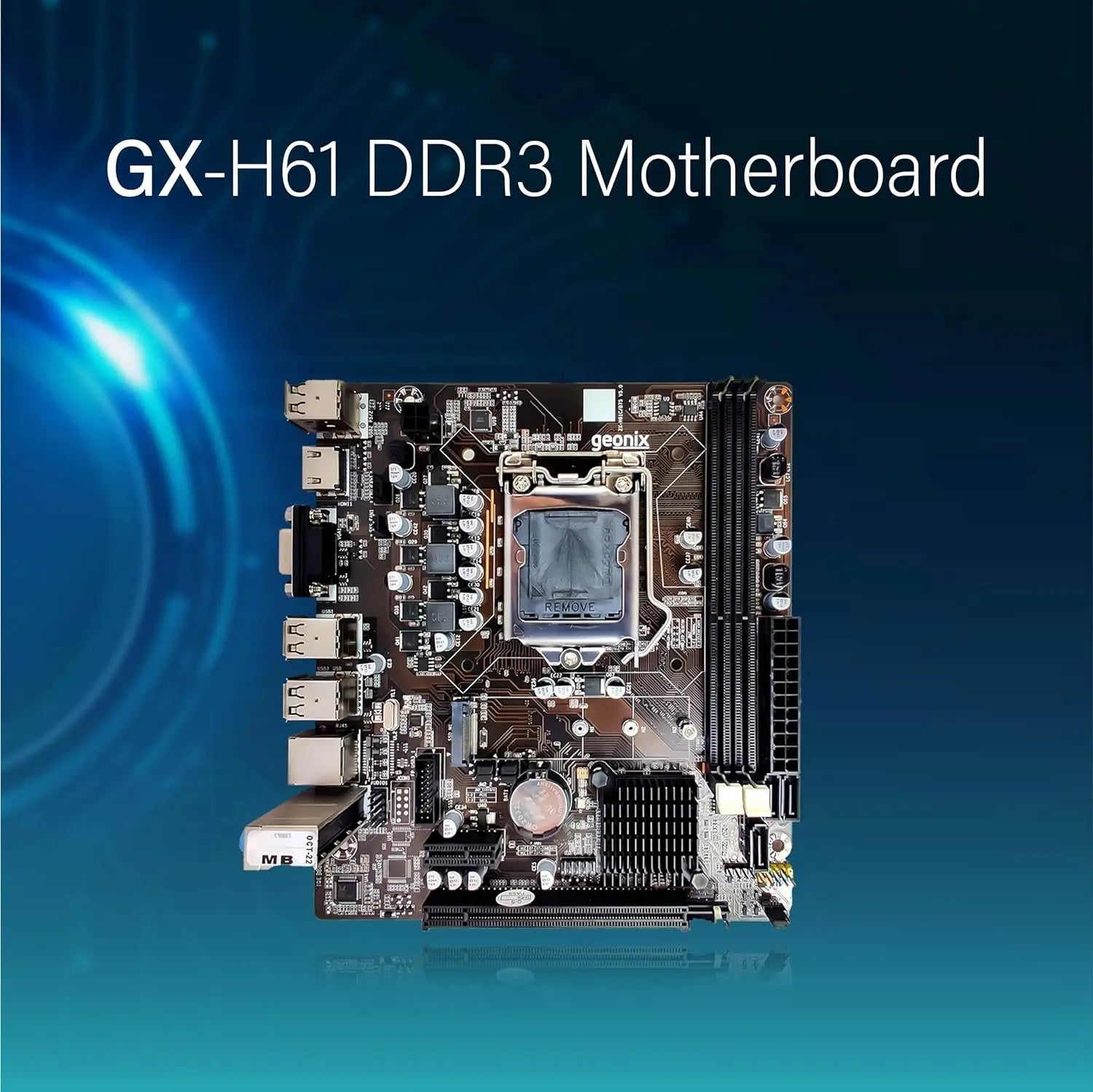

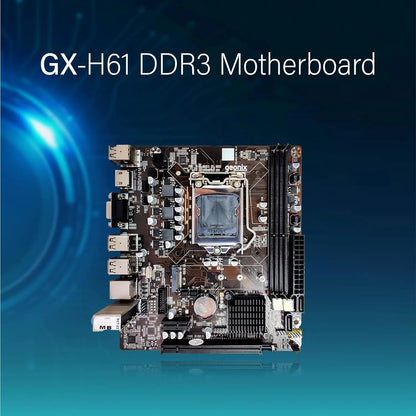

GEONIX Intel H61 Chipset LGA1155 Socket DDR3 Motherboard

GEONIX Intel H61 Chipset LGA1155 Socket DDR3 Motherboard

Rs. 1,190.00
Rs. 1,399.00 Rs. 1,190.00
Sale Sold out
Shipping calculated at checkout.

    Enhanced Performance: Upgrade your PC with our H61 DDR3 motherboard, designed to deliver improved performance and reliability for your computing needs.

    DDR3 Memory Support- 1066/1333/1600 Mhz: This motherboard supports DDR3 memory modules, offering faster data transfer rates and improved overall system responsiveness.

    Wide Compatibility: With a Socket LGA 1155 | support 2nd and 3rd gen CPU | this motherboard is compatible with a range of Intel processors, providing flexibility for your CPU choices.

    Integrated Graphics Support: Enjoy smooth graphics performance with the integrated Intel HD Graphics, providing vibrant visuals and supporting HD video playback.

    Onboard Audio and LAN: Experience high-quality sound with the onboard audio chipset, and connect to your network seamlessly with the integrated LAN controller.

    Reliable Design: Built with quality components and strict manufacturing standards, this motherboard offers stability and durability for long-term usage.

    Easy Setup and Configuration: The H61 DDR3 motherboard features a user-friendly BIOS interface, making it easy to configure settings and optimize performance.

    Model GX-H61 D3
    CPU Support LGA 1155 socket
    Processor Support Intel 2nd and 3rd Generation Processor i3/i5/i7
    Memory Slot 2x240-pin DDR3 SDRAM slots
    Memory support Up to 16GB
    Memory Clock Speed ‎1600 MHz
    GPU Support 710 and 730 cards
    Memory Bandwidth DDR3 1066/1333/1600MHz
    Form Factor Mi
    I/O Interface
    • 1 x VGA Port
    • 1 x HDMI port
    • 6 x USB 2.0, Compatible with USB 1.1
    • 1 x 3-in-1 Audio port (Line in/Line out/Mic in)
    • 1 x RJ45 port
    • 1 x M.2 Slot
    Onboard Interface
    • 1 x 24-pin ATX power connector
    • 1 x 4 pin ATX 12V power connector

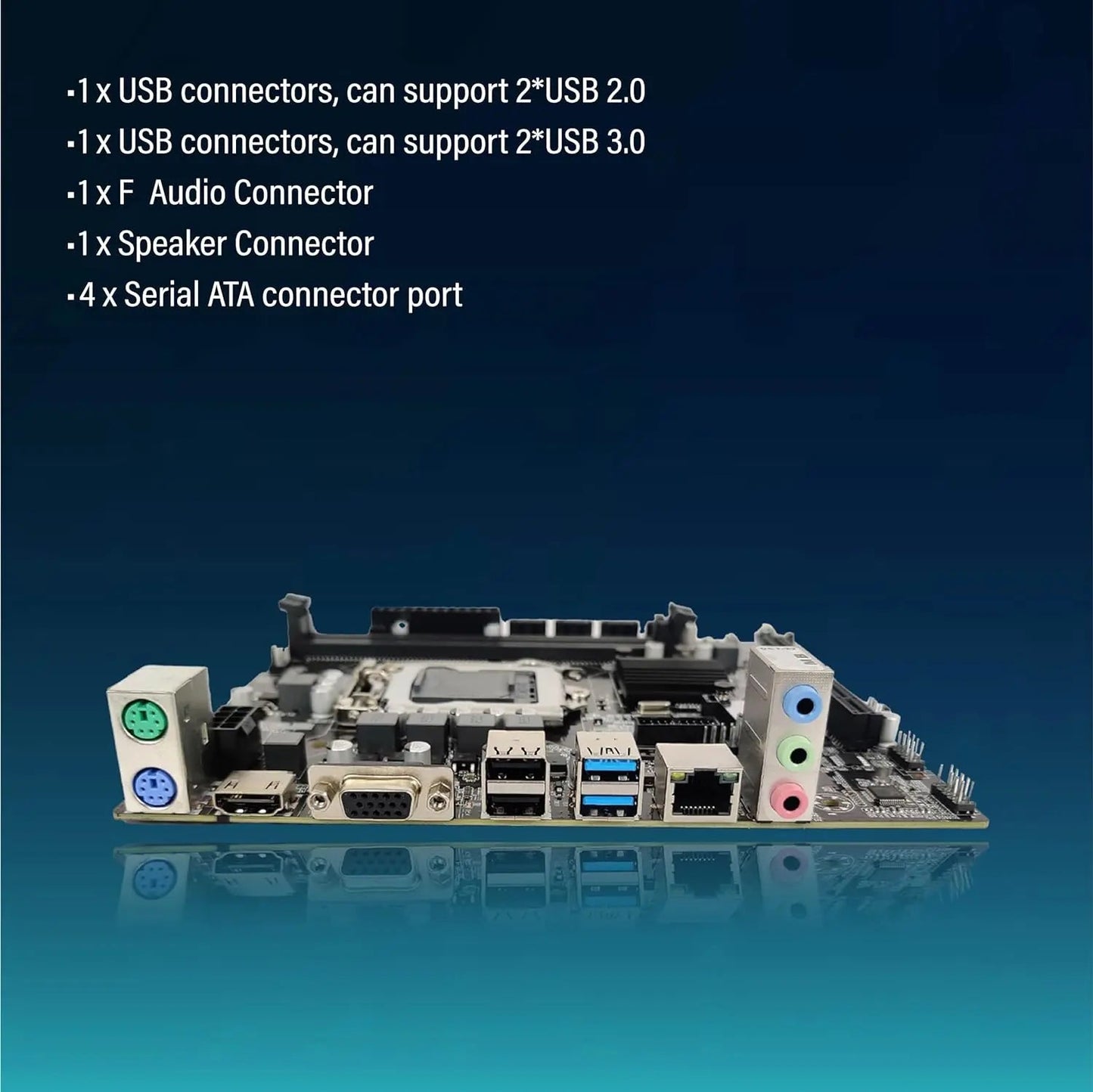

    • 1 x USB connectors, can support 2*USB 2.0
    • 1 x F _Audio connector
    • 1 x F _PANEL connector
    • 1 x SPEACKER connector
    • 2 x FAN connector
    • 4 x Serial ATA connectors
    Integrated Sound
    • With 6-channel HD audio codec onboard
    • Provide front audio interface; provides front stereo mic interface.
    LAN With 10/100Mbps LAN onboard
    Expansion slot 1 x PCI Express x 16 slot
    Dimensions ‎47 x 47 x 3.5 cm; 300 g
    Box Contents Motherboard
    Quick Start Guide
    Warranty 2 Years
