ASRock X870 Pro RS Wi-Fi AMD AM5 DDR5 ATX Motherboard
ASRock X870 Pro RS Wi-Fi AMD AM5 DDR5 ATX Motherboard
Regular price
Rs. 20,740.00
Regular price
Rs. 24,399.00
Sale price
Rs. 20,740.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Next-Gen Performance: Built for AMD AM5 processors, this motherboard supports the latest DDR5 memory, providing exceptional performance and speed for gaming and high-end computing tasks.
Integrated Wi-Fi: Comes with built-in Wi-Fi 6E, offering faster and more reliable wireless connectivity, reducing latency and improving overall network performance.
Robust Power Design: Features a high-quality power delivery system with premium components, ensuring stable and efficient power supply to the CPU, enhancing overclocking potential and system stability.
Comprehensive Cooling Solutions: Equipped with multiple fan headers, heatsinks, and support for water cooling, it ensures optimal thermal management, keeping the system cool even under heavy loads.
Rich Connectivity Options: Offers a wide range of connectivity options including multiple USB ports, PCIe 5.0 slots, M.2 slots for NVMe SSDs, and HDMI/DisplayPort outputs, providing flexibility for various peripherals and expansion cards.
| Model Name | ASRock X870 Pro RS Wi-Fi |
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* |
| Chipset | AMD X870 |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Wireless LAN | - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe/be - Supports 2.4GHz/5GHz/6GHz* frequency band - Supports 160MHz channel bandwidth with 6GHz* frequency band - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO |
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*K2406 |
| USB | CPU: - 2 x USB4 Type-C (Rear) - 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front) - 9 x USB 2.0 (6 Rear, 3 Front) |
| Connector | - 1 x Thermistor Cable Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |

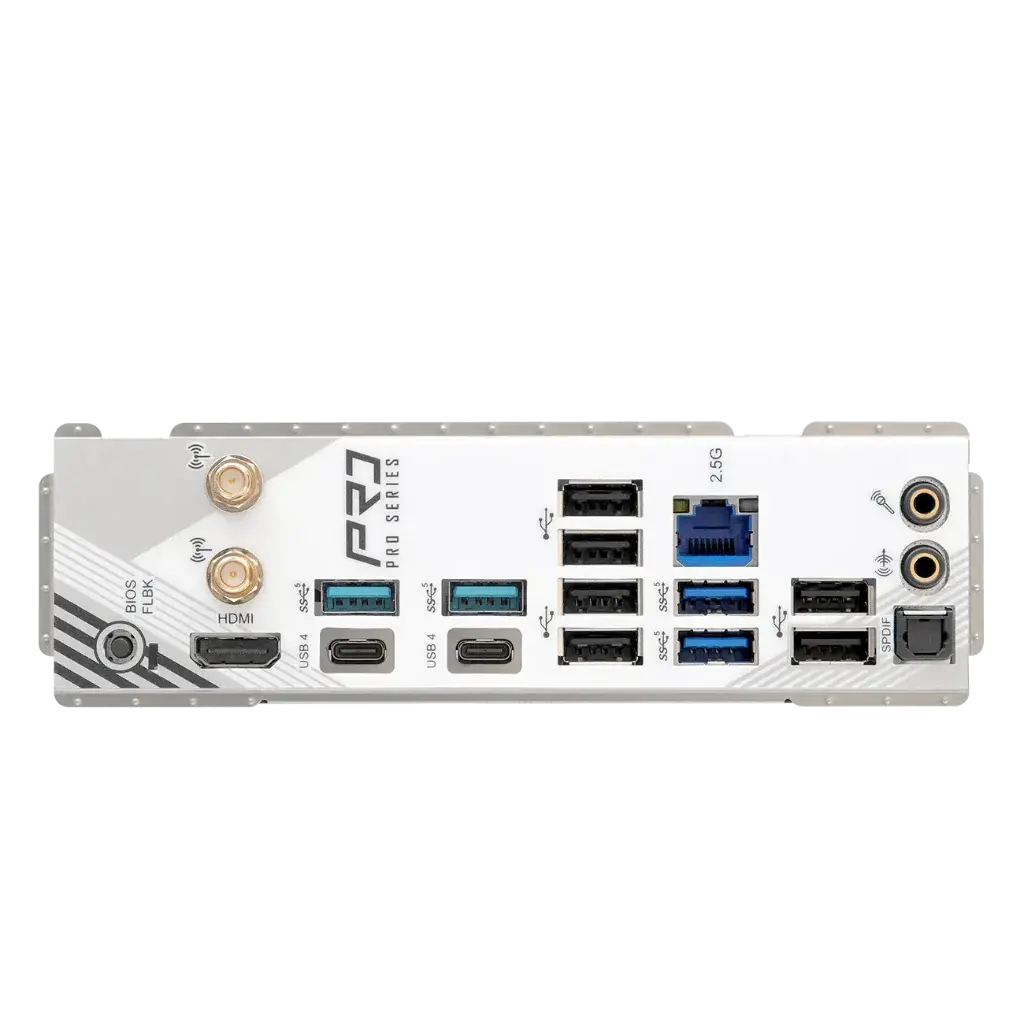

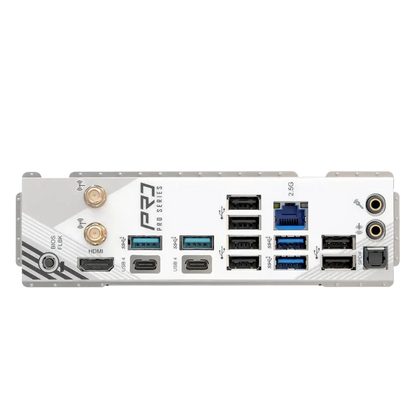

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 4 x USB 3.2 Gen1 Type-A Ports - 6 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Accessories | - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3-year limited warranty*** |
