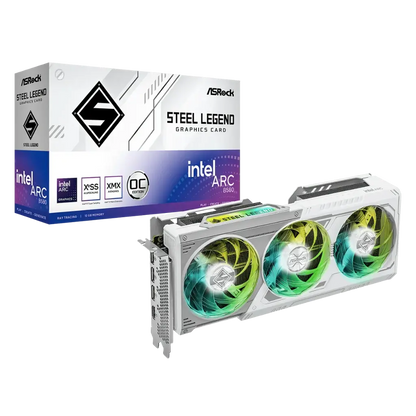

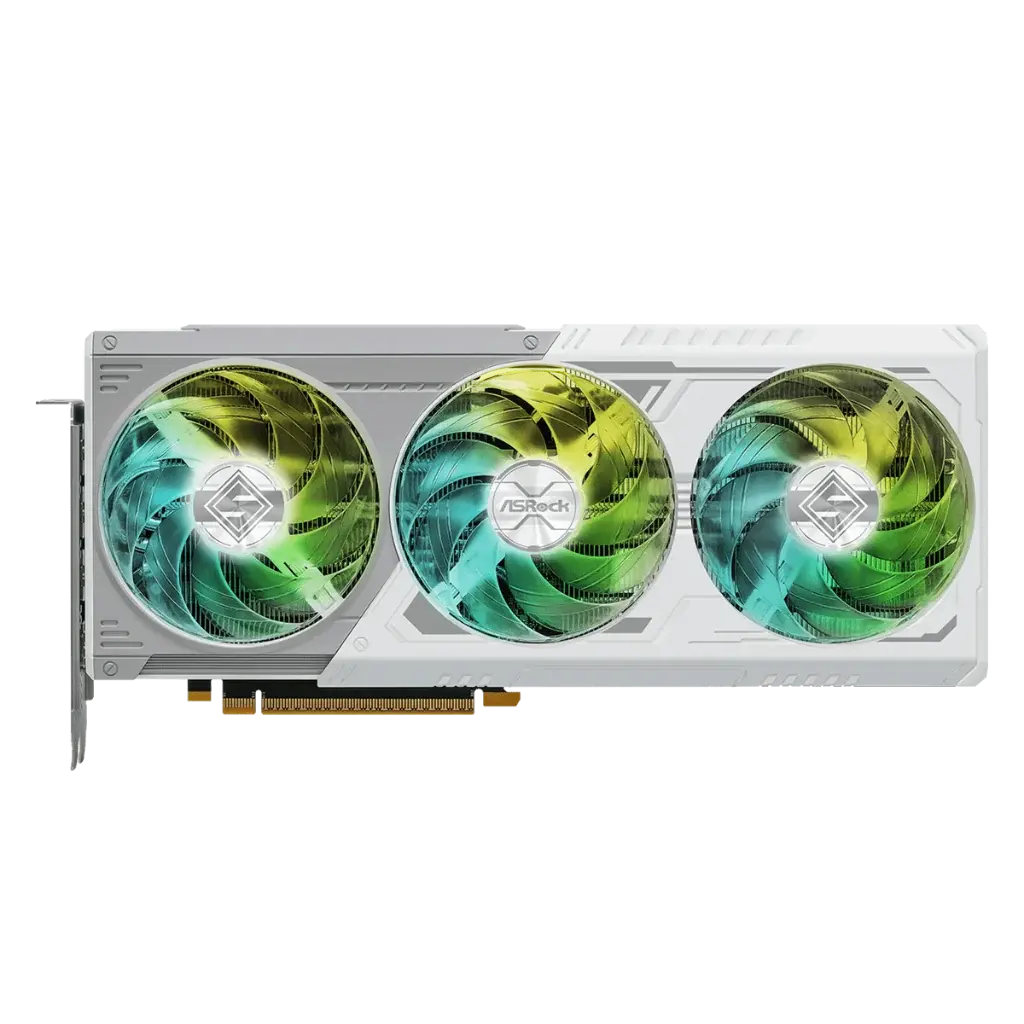

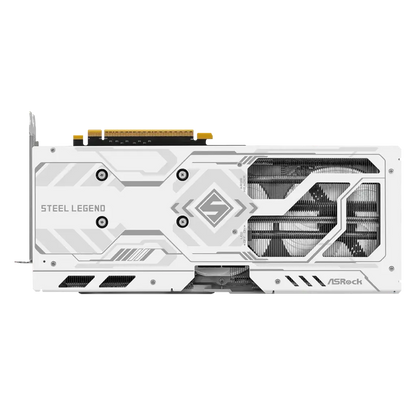

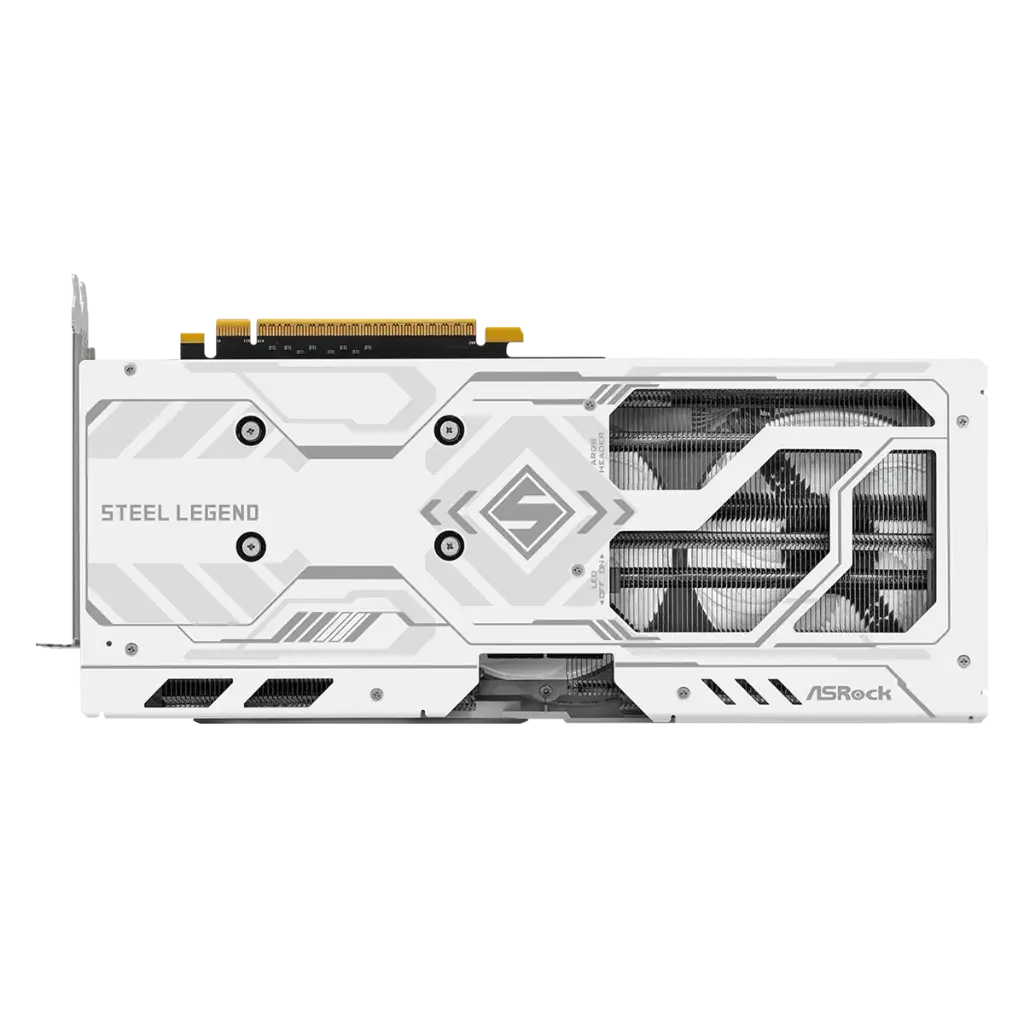

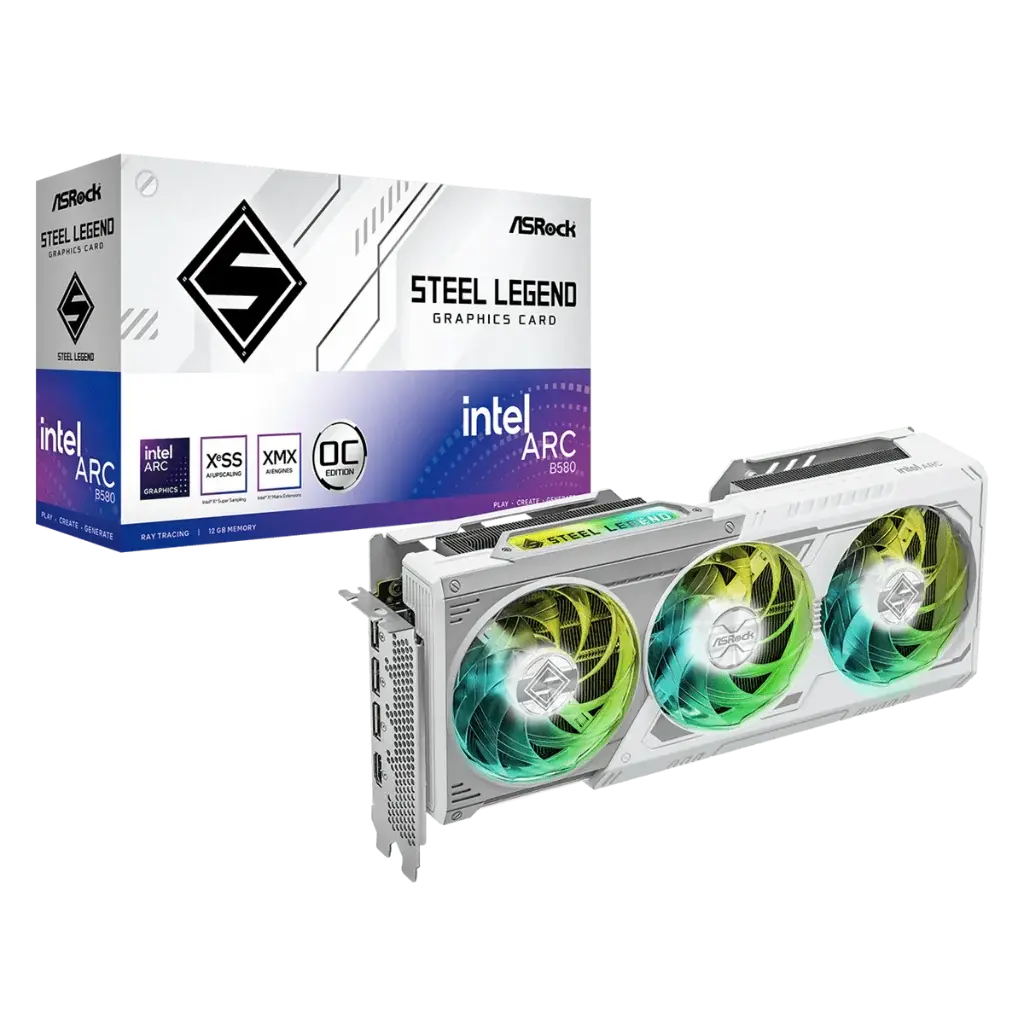

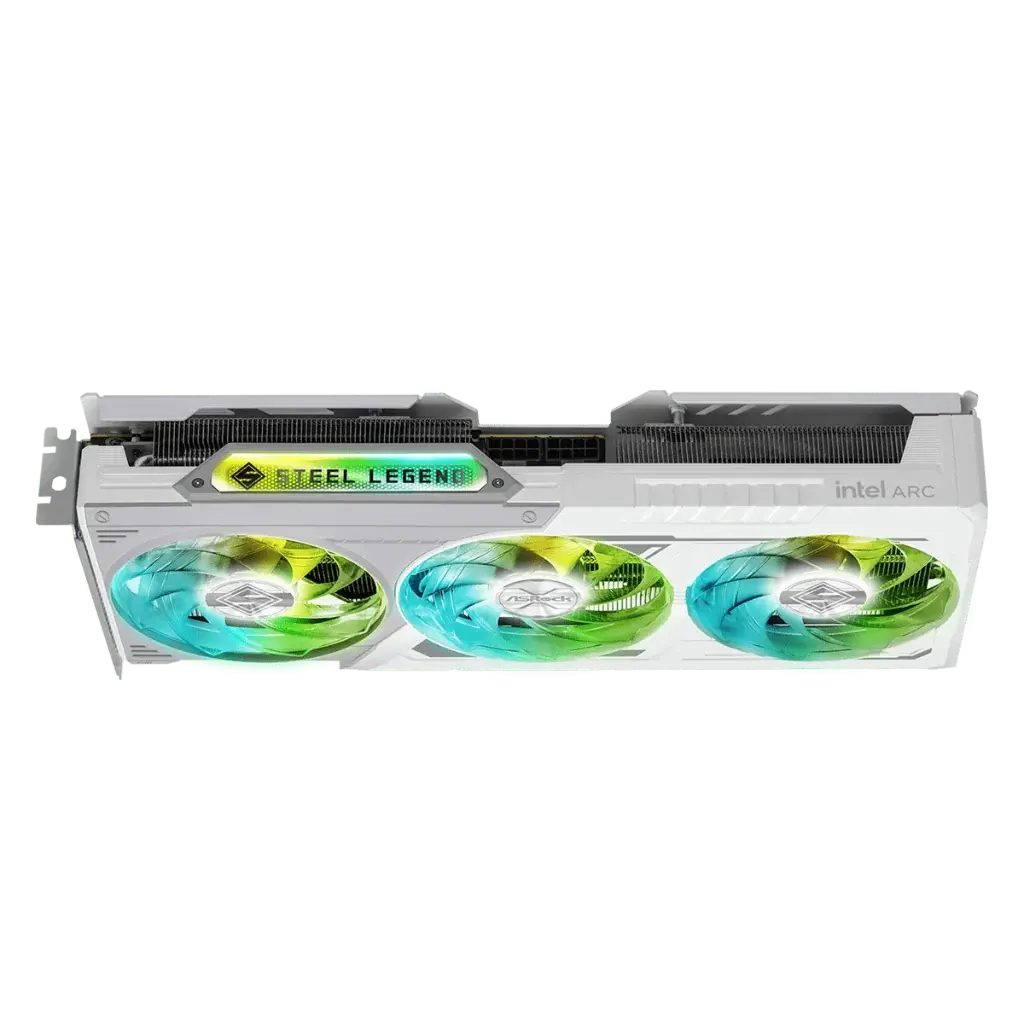

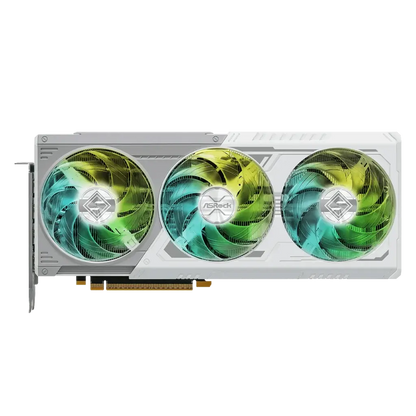

ASRock Intel Arc B580 Steel Legend 12GB OC GDDR6 192-Bit Graphics Card
ASRock Intel Arc B580 Steel Legend 12GB OC GDDR6 192-Bit Graphics Card
Regular price
Rs. 27,200.00
Regular price
Rs. 31,999.00
Sale price
Rs. 27,200.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
🧠 Powered by Intel Arc B580
- Built on the cutting-edge Xe2-HPG architecture
- 20 Xe-Cores, 20 Ray Tracing Units, and 160 AI Engines (XMX) for next-gen gaming and creative workloads
🎮 Gaming-Grade Performance
- Boost clock speeds up to 2800 MHz
- Smooth gameplay at 1440p and 4K resolutions
- Supports DirectX 12 Ultimate and OpenGL 4.6
🖥️ Memory & Bandwidth
- 12GB GDDR6 high-speed memory
- 192-bit memory interface for wide data lanes
- Blazing-fast 19 Gbps memory speed
🌐 Display & Connectivity
- 3x DisplayPort 2.1 with DSC for ultra-high refresh rates
- 1x HDMI 2.1 for 4K/8K output
- Supports up to 8K resolution (7680 x 4320)
❄️ Advanced Cooling
- Triple-fan design with optimized airflow
- Stylish aluminum backplate for durability and heat dissipation
- Quiet operation with 0dB fan technology
💡 Smart Features
- Intel XeSS 2.0: AI-powered upscaling with Super Resolution, Frame Generation, and XeLL
- ARGB lighting for customizable aesthetics
- Steel Legend styling: rugged, premium, and gamer-ready
🔌 Power & Build
- Dual 8-pin power connectors
- PCIe 4.0 x8 interface
- Recommended PSU: 650W
| Feature | Specification |
| GPU Model | Intel Arc B580 |
| Architecture | Intel Xe2-HPG (Battlemage) |
| Xe-Cores | 20 |
| Ray Tracing Units | 20 |
| AI Engines (XMX) | 160 |
| Memory | 12GB GDDR6 |
| Memory Interface | 192-bit |
| Memory Speed | 19 Gbps |
| GPU Clock Speed | 2800 MHz |
| Bus Interface | PCIe 4.0 x8 |
| TDP | ~200W (estimated) |
| Power Connectors | 2x 8-pin |
| Recommended PSU | 650W |
| Cooling | Triple Fan |
| Backplate | Yes |
| Display Outputs | 3x DisplayPort 2.1 with DSC, 1x HDMI 2.1 |
| Max Resolution | 7680 x 4320 (8K) |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |
| Upscaling Technology | Intel XeSS 2 (SR, FG, XeLL) |
| Form Factor | ATX, 298 mm length, 2.6-slot width |
| Warranty (Parts/Labor) | 3 Years from ASrock |
