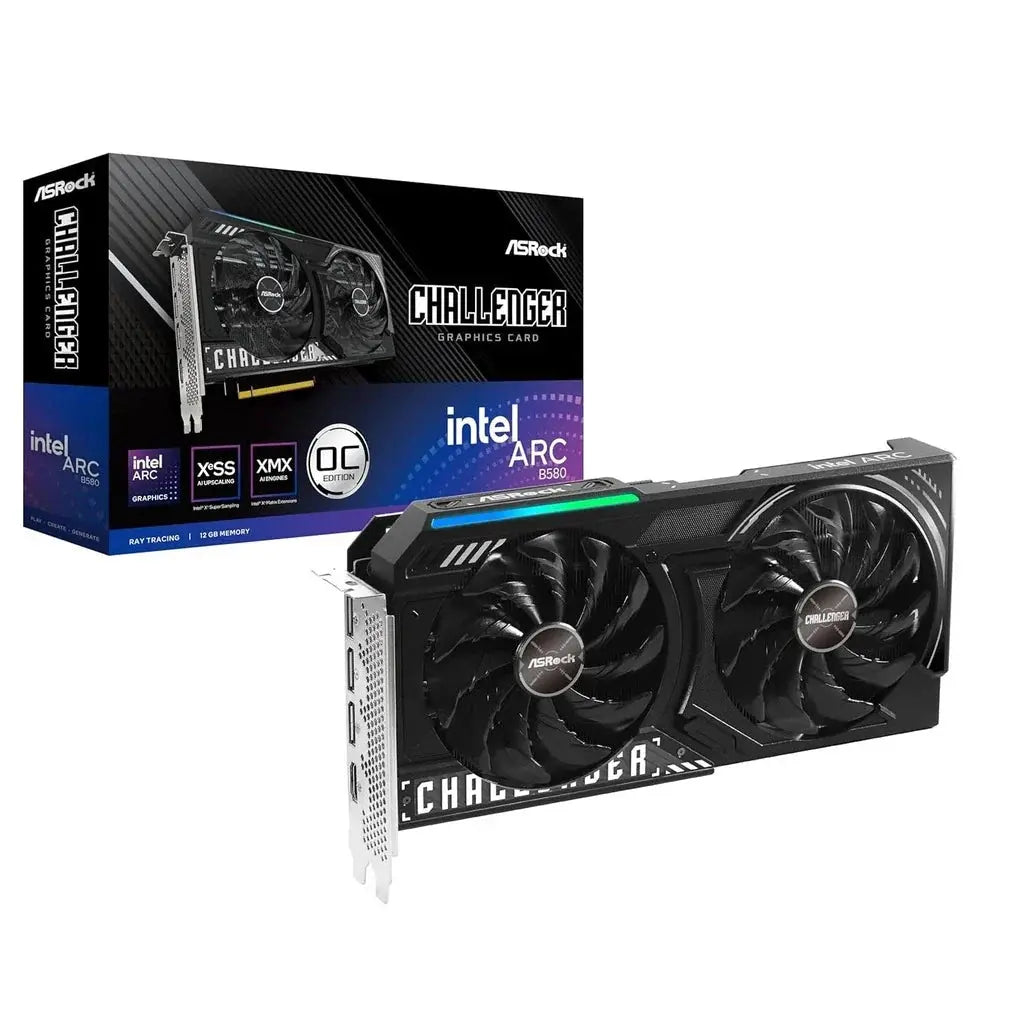

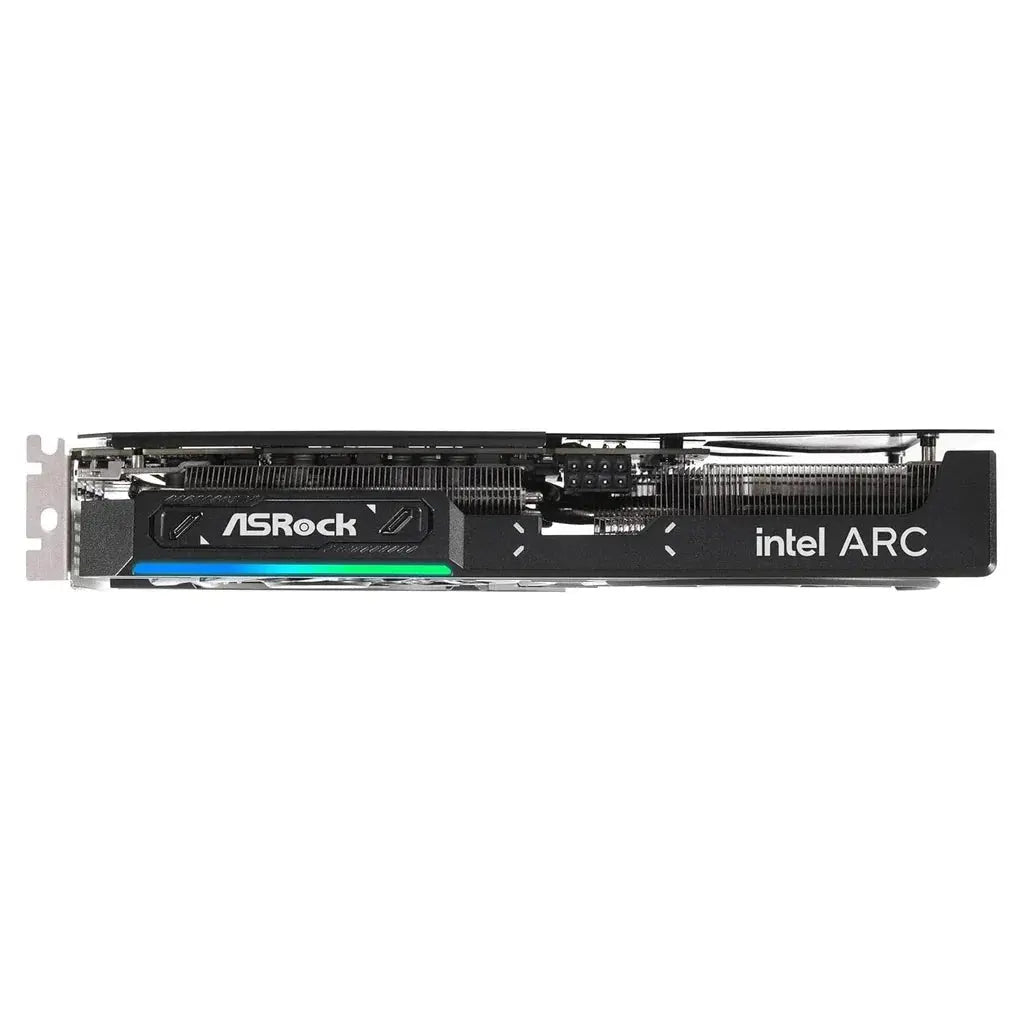

ASRock Intel Arc B580 Challenger 12GB OC GDDR6 192-Bit Graphics Card
ASRock Intel Arc B580 Challenger 12GB OC GDDR6 192-Bit Graphics Card
Couldn't load pickup availability

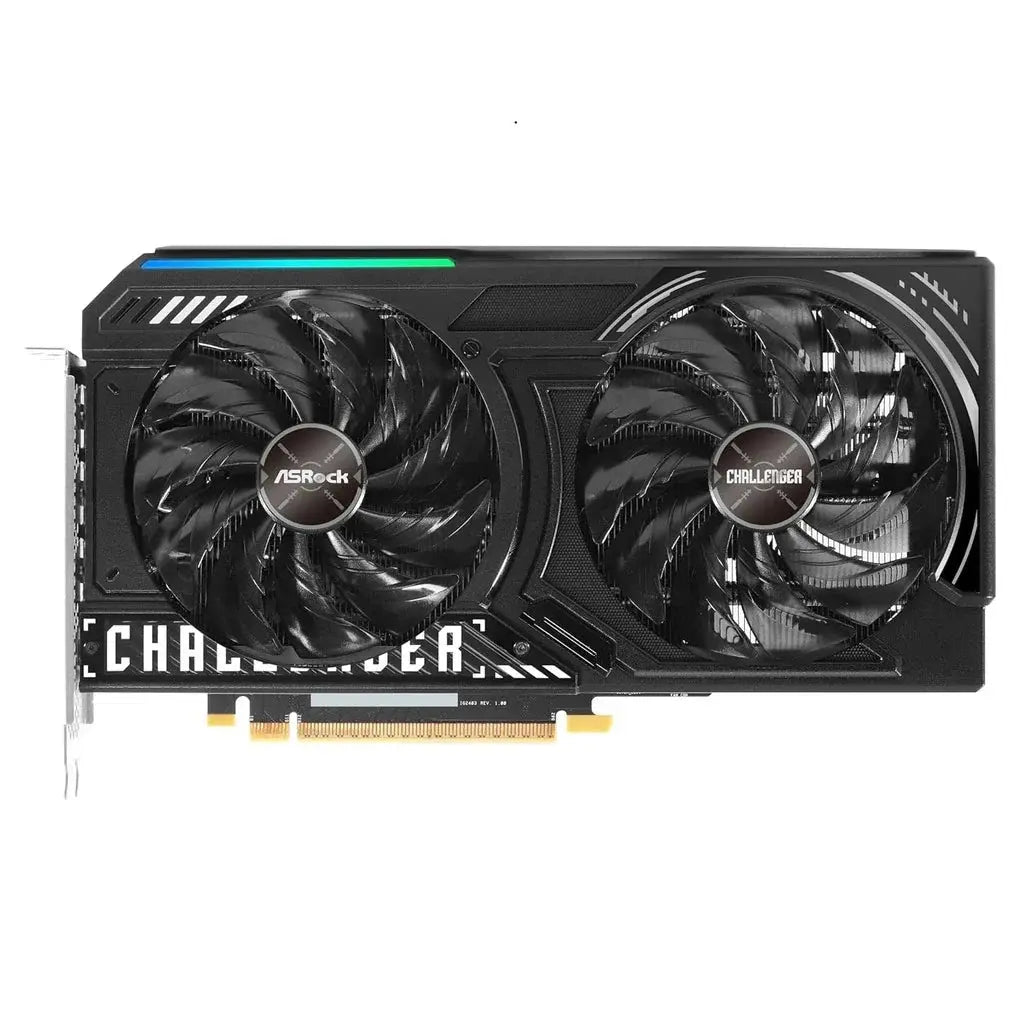

🌀 Dual Fan Cooling with Striped Axial Design
Equipped with a custom dual-fan system featuring Striped Axial Fans, this card enhances airflow and cooling efficiency. The fans spin under load and stop during idle for 0dB silent operation, balancing performance and noise.
🎮 12GB GDDR6 Memory on 192-bit Interface
With 12GB of GDDR6 VRAM and a 192-bit memory bus, the card delivers ample bandwidth and memory capacity for modern gaming at 1080p and 1440p, as well as for creative workloads like video editing and 3D rendering.
⚙️ Intel Xe HPG Architecture & XeSS Support
Built on Intel’s Xe-HPG architecture, it supports Xe Super Sampling (XeSS) for AI-enhanced upscaling, DirectX 12 Ultimate, and ray tracing, offering next-gen visuals and performance in supported games.

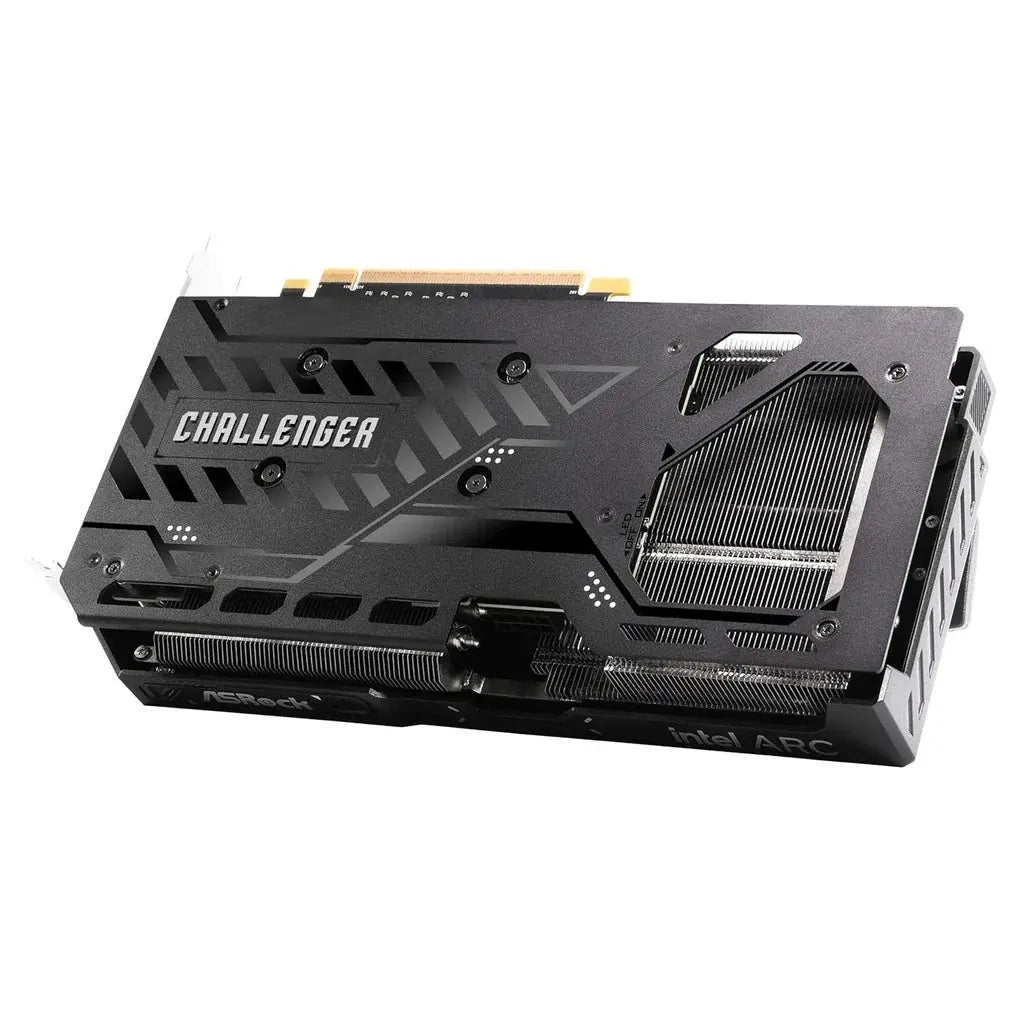

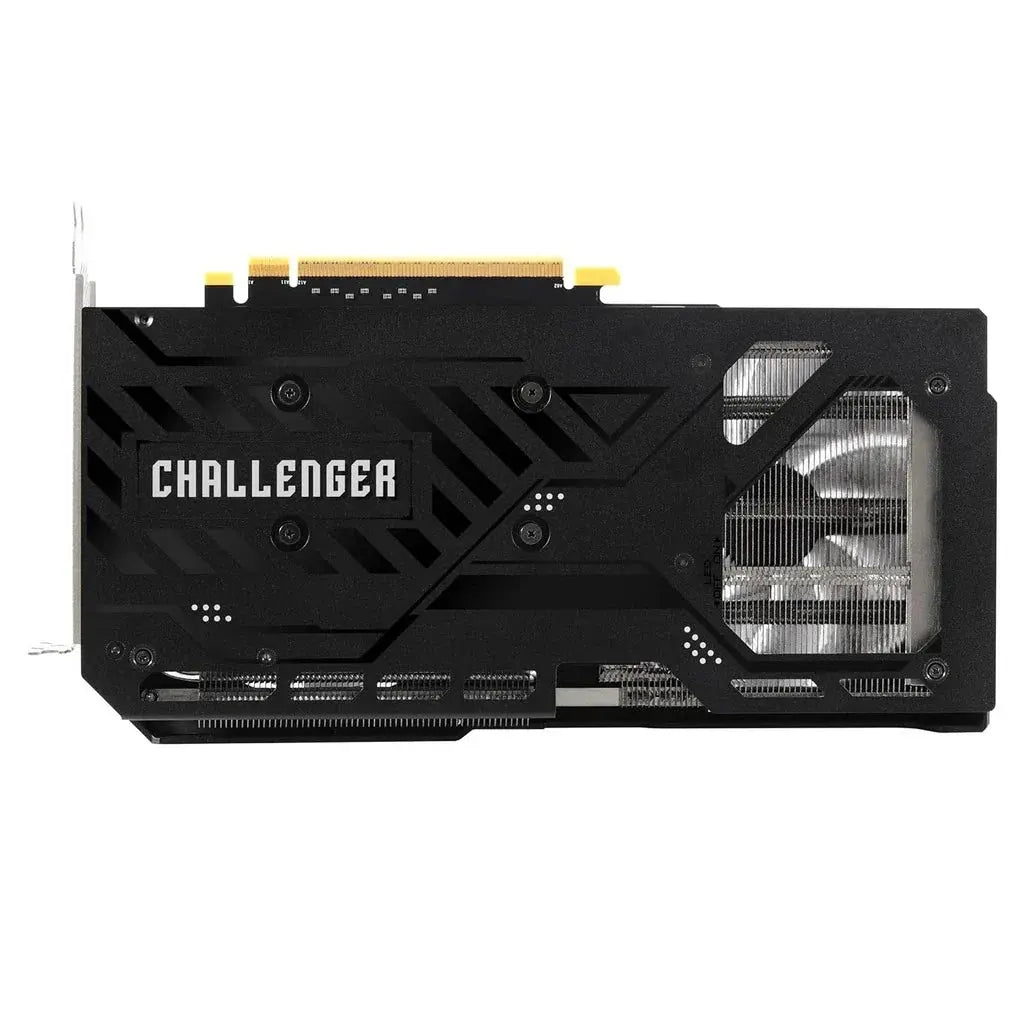

💡 Stylish Metal Backplate & LED Indicator
The card features a metal backplate for structural reinforcement and thermal efficiency, along with a multi-color LED indicator that adds a touch of customizable flair to your build.
🔌 Modern Connectivity & Power Efficiency

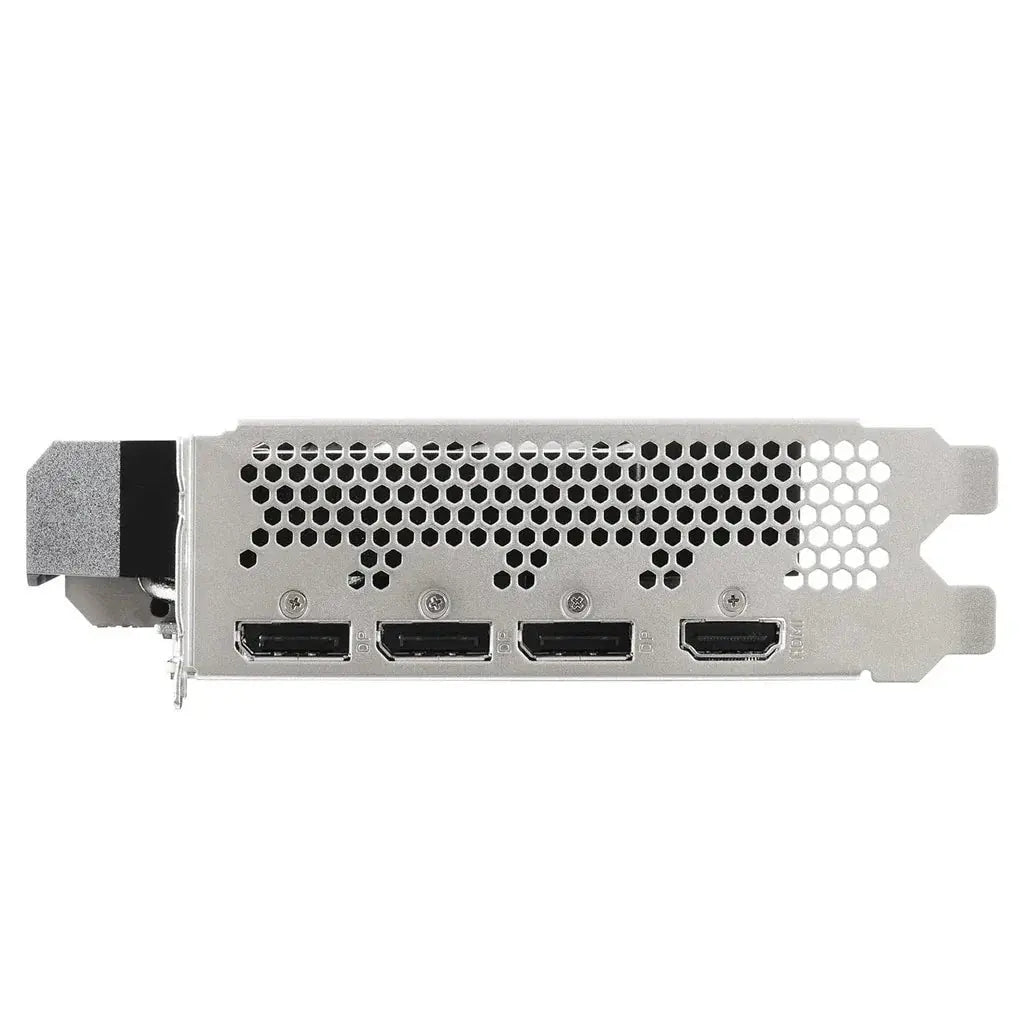

Includes 3x DisplayPort 2.1 and 1x HDMI 2.1a for high-resolution, high-refresh-rate displays. Powered via a single 8-pin connector, it’s optimized for PCIe 4.0 systems and offers a good balance of power and performance.
Model | B580-CL-12GO |
Graphics Engine | Intel® Arc B580 |
Bus Standard | PCI® Express4.0 x 8 |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Memory | GDDR6 12GB |
Engine Clock | 2740 MHz |
Intel® XMX Engines | 160 |
Compute Units | 20 |
Memory Clock | 19 Gbps |
Memory Interface | 192 bit |
Resolution | Digital Max Resolution: 7680 x 4320 |
Interface | 1 x DisplayPort 2.1 (Primary, up to UHBR13.5) 2 x DisplayPort 2.1 (Up to UHBR10) 1 x HDMI 2.1a |
HDCP | Yes |
Multi-view | 4 |
Recommended PSU | 650W |
Power Connector | 1 x 8-pin |
Accessories | 1 x Quick Installation Guide |
Dimensions | 249 x 132 x 41mm, 2-slot |
Net Weight | 720 g |
Warranty | 3 Years from ASRock |
