ASRock Intel Arc B570 Challenger 10GB OC GDDR6 160-Bit Graphics Card
ASRock Intel Arc B570 Challenger 10GB OC GDDR6 160-Bit Graphics Card
Regular price
Rs. 22,695.00
Regular price
Rs. 26,699.00
Sale price
Rs. 22,695.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
🔧 Specifications
- GPU Model: Intel Arc B570
- Memory: 10GB GDDR6
- Memory Interface: 160-bit
- GPU Clock Speed: Up to 2600 MHz
- Memory Clock Speed: 19 Gbps
- Architecture: Intel Xe 2-HPG
- Compute Units: 18 Xe2-Cores
- AI Engines: 144 XMX Engines
- Ray Tracing Units: 18
- Bus Interface: PCIe 4.0 x8
- Power Connector: 1x 8-pin
- TDP: 150W
- Recommended PSU: 600W
🖥️ Display Outputs
- 3x DisplayPort 2.1
- 1x HDMI 2.1a
- Max Resolution: 7680 x 4320
🌟 Features

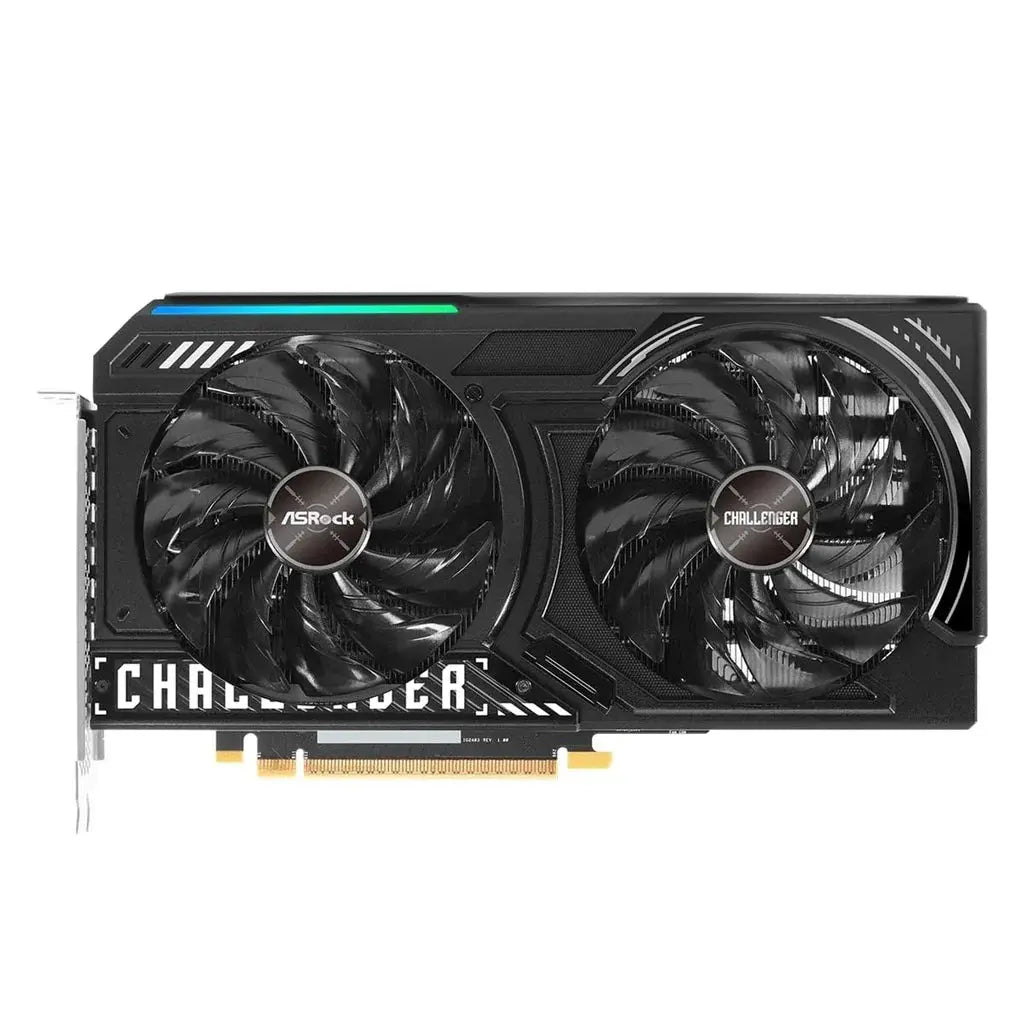

- Dual Fan Design for optimized cooling

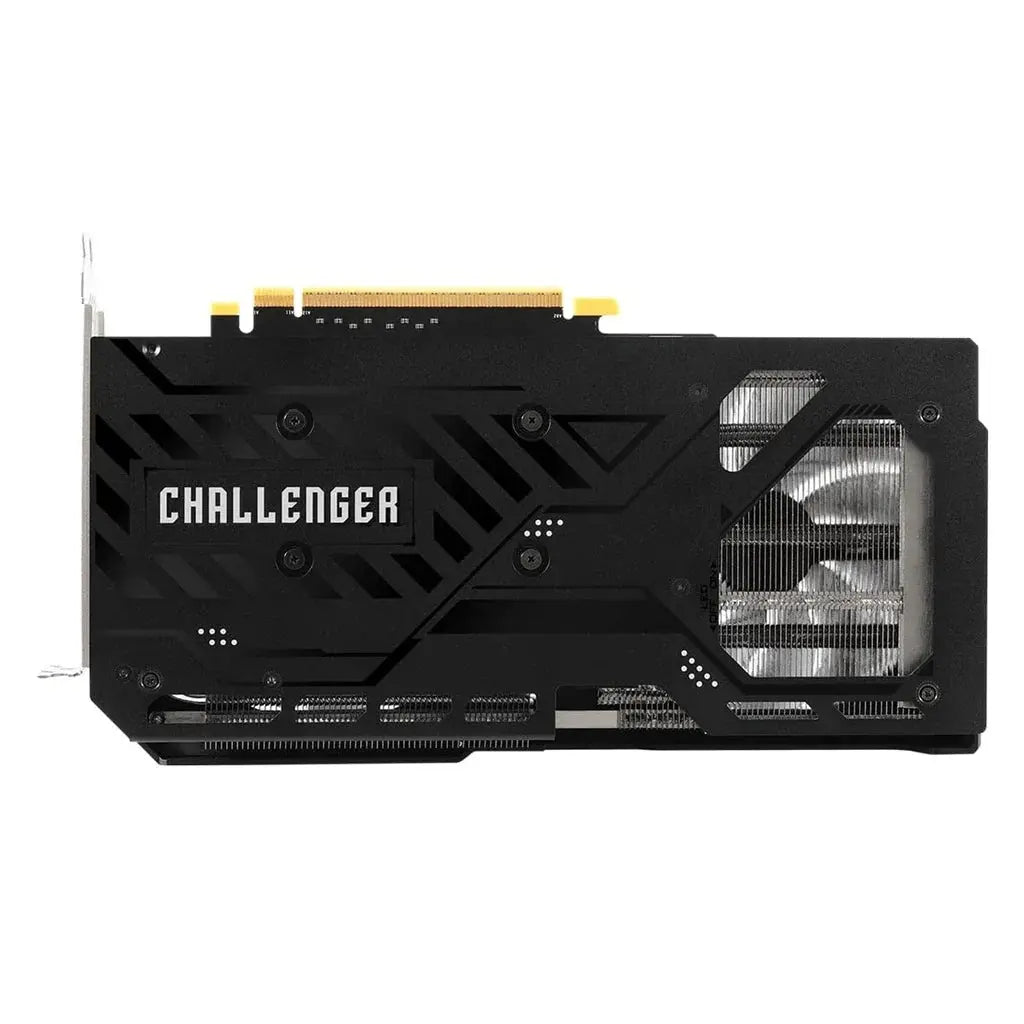

- Stylish metal backplate
- LED indicator with switchable lighting
- 0dB silent cooling (fans stop at low temps)
- Intel Xe Super Sampling (XeSS) for enhanced image quality
- DirectX 12 Ultimate support for advanced gaming features
| Feature | Specification |
| GPU Model | Intel Arc B570 |
| Architecture | Intel Xe2-HPG |
| Xe-Cores | 18 |
| Ray Tracing Units | 18 |
| AI Engines (XMX) | 144 |
| Memory | 10GB GDDR6 |
| Memory Interface | 160-bit |
| Memory Speed | 19 Gbps |
| GPU Clock Speed | Up to 2600 MHz |
| Bus Interface | PCIe 4.0 x8 |
| TDP | 150W |
| Power Connector | 1x 8-pin |
| Recommended PSU | 600W |
| Cooling | Dual Fan, 0dB Silent Cooling |
| Backplate | Metal Backplate |
| LED Indicator | Yes, switchable lighting |
| Display Outputs | 3x DisplayPort 2.1, 1x HDMI 2.1a |
| Max Resolution | 7680 x 4320 (8K) |
| DirectX Support | DirectX 12 Ultimate |
| Upscaling Technology | Intel XeSS |
| Warranty (Parts) | 3 Years from ASRock |
